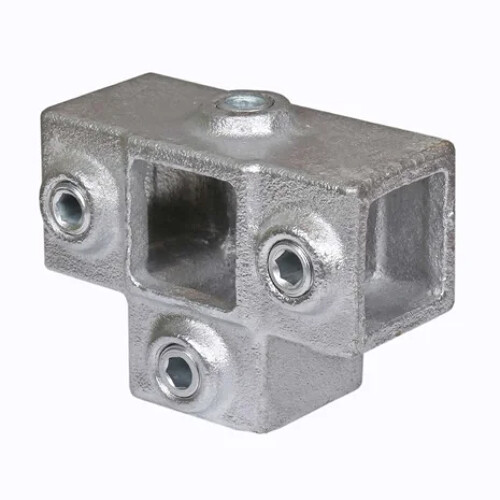

Square Side Outlet Tee 176D (40mm)
Tube Clamp or Pipe Clamps for 40x40mm box section. Complies with B.S. EN1461. And are also known by the term key clamps.
Three way side outlet tee used to join 3 tubes at 90° to each other with the vertical passing through the fitting. Typical use would be on structures such as market stall or play frames.
Our tube clamps can be used to produce a wide range of handrails, furniture pieces, shop fittings, displays etc... By using square tube clamps you can beneift from a more unique design, which is much faster to assemble.
This clamp is suitable for our 40x40 box section available in galvanised steel finish or aluminium.
| Info |
Detail |
| Manufacturing Standard |
B.S. EN1461. |
| Material |
Blackheart malleable iron casting (BS EN 1562:1997) using grade B32-10 material with a hot dipped galvanised finish (BS EN 1461:1999) |
| Allen Key Size |
1/4 |
| Weight |
1.08kg |
All clamps come with stainless steel grub screws fitted. If full tightened using a ratchet key to a torque of 4.1kg/m (29ft/lb), the grub screw is capable of withstanding an applied slipload of 900kg.
